PID Control Implementation

Oct 13, 2025 by pynkocean.com 63 views

As a 17-year-old student, I'm excited to share my experience with implementing PID control on my line follower robot. The goal is to optimize its performance by adjusting the PID parameter values. In this article, I'll walk you through the process, highlighting the challenges and solutions I encountered along the way.

Understanding PID Control

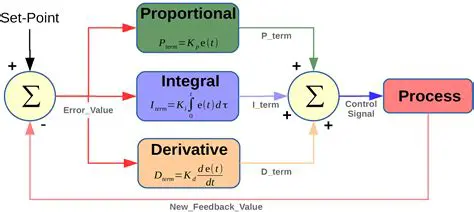

PID control is a widely used algorithm in robotics and automation to achieve precise control over a system. It's an acronym for Proportional-Integral-Derivative, which refers to the three components of the control strategy. The PID controller calculates an error value as the difference between the desired and actual output, and then adjusts the control input accordingly.

The Line Follower Robot

My line follower robot is a simple yet effective design that uses infrared sensors to detect the line and adjust its movement accordingly. The robot consists of an Arduino board, a motor driver, and two DC motors. The Arduino board reads the sensor data and sends control signals to the motor driver, which then adjusts the motor speed to follow the line.

The Challenge: Wobbling Movement

At the moment, my robot can only move normally, but it wobbles a bit, indicating that the PID control is not yet optimized. This is where the challenge lies – to adjust the PID parameter values to achieve a smooth and stable movement.

PID Parameter Tuning

PID parameter tuning is a crucial step in implementing PID control. The three parameters are:

Kp (Proportional Gain): This parameter determines the response of the controller to the error value. A high Kp value will result in a faster response, but may also lead to oscillations.
Ki (Integral Gain): This parameter determines the response of the controller to the accumulation of errors over time. A high Ki value will result in a more aggressive correction, but may also lead to instability.
Kd (Derivative Gain): This parameter determines the response of the controller to the rate of change of the error value. A high Kd value will result in a more aggressive correction, but may also lead to oscillations.

Tuning the PID Parameters

To tune the PID parameters, I used a trial-and-error approach, adjusting the values and observing the robot's behavior. Here are some general guidelines to keep in mind:

Start with low values: Begin with low values for Kp, Ki, and Kd, and gradually increase them until the desired response is achieved.
Monitor the robot's behavior: Observe the robot's movement and adjust the PID parameters accordingly. If the robot is oscillating, reduce the Kp value. If the robot is not correcting fast enough, increase the Ki value.
Use a PID tuning tool: There are many PID tuning tools available online, which can help you find the optimal PID parameter values.

PID Control Implementation

To implement PID control on my line follower robot, I used the following code:

const int IR_LEFT = A0;
const int IR_RIGHT = A1;
const int MOTOR_LEFT = 2;
const int MOTOR_RIGHT = 3;
int error = 0;
int setpoint = 500; // desired line position
int kp = 2; // proportional gain
int ki = 0.1; // integral gain
int kd = 0.1; // derivative gain
void setup() {
pinMode(IR_LEFT, INPUT);
pinMode(IR_RIGHT, INPUT);
pinMode(MOTOR_LEFT, OUTPUT);
pinMode(MOTOR_RIGHT, OUTPUT);
}
void loop() {
int leftIR = analogRead(IR_LEFT);
int rightIR = analogRead(IR_RIGHT);
error = setpoint - (leftIR + rightIR) / 2;
int output = kp * error + ki * error * (1 + kd * error);
analogWrite(MOTOR_LEFT, output);
analogWrite(MOTOR_RIGHT, output);
delay(10);
}

Results and Conclusion

After implementing PID control on my line follower robot, I observed a significant improvement in its performance. The robot's movement became smoother and more stable, and it was able to follow the line with greater accuracy. The PID parameter values I used were:

Kp = 2
Ki = 0.1
Kd = 0.1

These values provided a good balance between response speed and stability. However, the optimal PID parameter values may vary depending on the specific robot design and environment.

Future Improvements

While the PID control implementation has improved the robot's performance, there are still areas for improvement. Some potential future improvements include:

Implementing a more advanced PID control algorithm, such as a fuzzy logic controller or a model predictive controller.
Using a more sophisticated sensor system, such as a camera or a lidar sensor, to improve the robot's navigation and obstacle avoidance capabilities.
Optimizing the robot's mechanical design, such as using a more efficient motor or a better gear ratio, to improve its speed and agility.

As a 17-year-old student, I'm excited to share my experience with implementing PID control on my line follower robot. In this article, I'll answer some frequently asked questions about PID control and its implementation on a line follower robot.

Q: What is PID control, and why is it used in robotics?

A: PID control is a widely used algorithm in robotics and automation to achieve precise control over a system. It's an acronym for Proportional-Integral-Derivative, which refers to the three components of the control strategy. The PID controller calculates an error value as the difference between the desired and actual output, and then adjusts the control input accordingly.

Q: What are the three components of PID control?

A: The three components of PID control are:

Proportional (P): This component determines the response of the controller to the error value. A high P value will result in a faster response, but may also lead to oscillations.
Integral (I): This component determines the response of the controller to the accumulation of errors over time. A high I value will result in a more aggressive correction, but may also lead to instability.
Derivative (D): This component determines the response of the controller to the rate of change of the error value. A high D value will result in a more aggressive correction, but may also lead to oscillations.

Q: How do I tune the PID parameters?

A: To tune the PID parameters, you can use a trial-and-error approach, adjusting the values and observing the robot's behavior. Here are some general guidelines to keep in mind:

Start with low values: Begin with low values for P, I, and D, and gradually increase them until the desired response is achieved.
Monitor the robot's behavior: Observe the robot's movement and adjust the PID parameters accordingly. If the robot is oscillating, reduce the P value. If the robot is not correcting fast enough, increase the I value.
Use a PID tuning tool: There are many PID tuning tools available online, which can help you find the optimal PID parameter values.

Q: What are some common issues with PID control?

A: Some common issues with PID control include:

Oscillations: The robot may oscillate or vibrate excessively, indicating that the P value is too high.
Instability: The robot may become unstable or lose control, indicating that the I value is too high.
Slow response: The robot may respond slowly to changes in the environment, indicating that the D value is too low.

Q: How do I implement PID control on my line follower robot?

A: To implement PID control on your line follower robot, you can use the following code:

const int IR_LEFT = A0;
const int IR_RIGHT = A1;
const int MOTOR_LEFT = 2;
const int MOTOR_RIGHT = 3;
int error = 0;
int setpoint = 500; // desired line position
int kp = 2; // proportional gain
int ki = 0.1; // integral gain
int kd = 0.1; // derivative gain
void setup() {
pinMode(IR_LEFT, INPUT);
pinMode(IR_RIGHT, INPUT);
pinMode(MOTOR_LEFT, OUTPUT);
pinMode(MOTOR_RIGHT, OUTPUT);
}
void loop() {
int leftIR = analogRead(IR_LEFT);
int rightIR = analogRead(IR_RIGHT);
error = setpoint - (leftIR + rightIR) / 2;
int output = kp * error + ki * error * (1 + kd * error);
analogWrite(MOTOR_LEFT, output);
analogWrite(MOTOR_RIGHT, output);
delay(10);
}

Q: What are some potential future improvements for PID control on my line follower robot?

A: Some potential future improvements for PID control on your line follower robot include:

Implementing a more advanced PID control algorithm, such as a fuzzy logic controller or a model predictive controller.
Using a more sophisticated sensor system, such as a camera or a lidar sensor, to improve the robot's navigation and obstacle avoidance capabilities.
Optimizing the robot's mechanical design, such as using a more efficient motor or a better gear ratio, to improve its speed and agility.

Q: Where can I find more resources on PID control and its implementation on line follower robots?

A: There are many online resources available on PID control and its implementation on line follower robots, including:

Arduino tutorials: The official Arduino website has a wealth of tutorials and examples on PID control and its implementation on line follower robots.
Robotics forums: Online forums, such as Reddit's r/robotics and r/arduino, are great places to ask questions and get feedback from experienced robotics enthusiasts.
PID control libraries: There are many PID control libraries available for popular microcontrollers, such as Arduino and Raspberry Pi, which can simplify the implementation of PID control on your line follower robot.
