The Parabolic Shape of a Satellite Dish

Oct 13, 2025 by pynkocean.com 32 views

Introduction

A satellite dish is a crucial component in the field of telecommunications, enabling us to receive signals from satellites orbiting the Earth. The shape of a satellite dish is a parabola, which is a mathematical concept that can be described by a specific equation. In this article, we will delve into the mathematical analysis of a satellite dish, exploring the reasons behind its parabolic shape and the equation that governs its graph.

The Parabolic Shape of a Satellite Dish

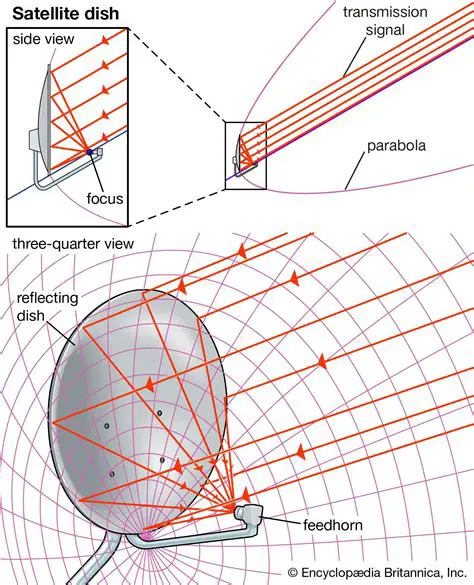

The parabolic shape of a satellite dish is a result of the way radio waves are reflected from its surface. Radio waves are a form of electromagnetic radiation that can be reflected by a parabolic surface, concentrating the energy at a single point, known as the focus. This property of parabolic surfaces makes them ideal for use in satellite dishes, as they enable the collection and concentration of radio waves from distant satellites.

The Equation of a Satellite Dish

The graph of a satellite dish can be described by the equation:

y = ax^2

where a is a constant that determines the shape of the parabola. This equation represents a parabola that opens upwards, with its vertex at the origin (0,0). The value of a determines the steepness of the parabola, with larger values resulting in a steeper curve.

Derivation of the Equation

To derive the equation of a satellite dish, we need to consider the properties of a parabolic surface. A parabolic surface is defined as the set of all points that are equidistant from a fixed point, known as the focus. The equation of a parabola can be derived by considering the distance between a point on the parabola and the focus.

Let's consider a point (x,y) on the parabola, and a point (0,f) as the focus. The distance between these two points is given by:

d = sqrt((x-0)^2 + (y-f)^2)

Since the point (x,y) lies on the parabola, the distance d is equal to the distance between the point (x,y) and the vertex (0,0). This distance is given by:

d = sqrt(x^2 + y^2)

Equating these two expressions for d, we get:

sqrt(x^2 + y^2) = sqrt((x-0)^2 + (y-f)^2)

Simplifying this equation, we get:

x^2 + y^2 = (x-0)^2 + (y-f)^2

Expanding and simplifying this equation, we get:

x^2 + y^2 = x^2 + y^2 - 2fy + f^2

Simplifying further, we get:

2fy = f^2

Dividing both sides by 2f, we get:

y = f/2

This is the equation of a parabola that opens upwards, with its vertex at the origin (0,0). The value of f determines the shape of the parabola, with larger values resulting in a steeper curve.

Properties of a Satellite Dish

A satellite dish has several important properties that make it useful for receiving signals from satellites. Some of these properties include:

Focus: The focus of a satellite dish is the point where the radio waves are concentrated. This point is usually located at the center of the dish.
Aperture: The aperture of a satellite dish is the diameter of the dish. A larger aperture results in a stronger signal.
Gain: The gain of a satellite dish is a measure of its ability to concentrate radio waves. A larger gain results in a stronger signal.
Frequency: The frequency of a satellite dish is the range of frequencies that it can receive. A satellite dish can receive signals at a specific frequency or a range of frequencies.

Applications of Satellite Dishes

Satellite dishes have several important applications in the field of telecommunications. Some of these applications include:

Satellite TV: Satellite dishes are used to receive television signals from satellites orbiting the Earth.
Internet: Satellite dishes are used to provide internet access to remote areas where other forms of internet access are not available.
Communication: Satellite dishes are used for communication between two points on the Earth's surface.
Navigation: Satellite dishes are used for navigation, such as GPS.

Conclusion

In conclusion, the shape of a satellite dish is a parabola, which is a mathematical concept that can be described by a specific equation. The equation of a satellite dish is given by y = ax^2, where a is a constant that determines the shape of the parabola. The properties of a satellite dish, such as its focus, aperture, gain, and frequency, make it useful for receiving signals from satellites. The applications of satellite dishes, such as satellite TV, internet, communication, and navigation, are numerous and important.

References

[1] "Satellite Dish" by Wikipedia
[2] "Parabolic Dish" by MathWorld
[3] "Satellite Communications" by NASA

Q: What is the purpose of a satellite dish?

A: The primary purpose of a satellite dish is to receive signals from satellites orbiting the Earth. These signals can be used for a variety of purposes, including television, internet, communication, and navigation.

Q: How does a satellite dish work?

A: A satellite dish works by collecting and concentrating radio waves from a satellite. The dish is shaped like a parabola, which allows it to focus the radio waves onto a small area, known as the focus. This concentrated energy is then received by a receiver, which decodes the signal and sends it to a device, such as a television or computer.

Q: What are the different types of satellite dishes?

A: There are several types of satellite dishes, including:

C-band dishes: These dishes are used for communication and navigation purposes and operate at a frequency of 4-8 GHz.
Ku-band dishes: These dishes are used for television and internet purposes and operate at a frequency of 12-18 GHz.
Ka-band dishes: These dishes are used for high-speed internet and communication purposes and operate at a frequency of 26-40 GHz.
DBS (Direct Broadcast Satellite) dishes: These dishes are used for television purposes and operate at a frequency of 12-18 GHz.

Q: What are the advantages of using a satellite dish?

A: The advantages of using a satellite dish include:

Global coverage: Satellite dishes can receive signals from anywhere in the world, making them ideal for remote or rural areas.
High-speed internet: Satellite dishes can provide high-speed internet access, making them ideal for businesses and individuals who require fast and reliable internet.
Reliability: Satellite dishes are less prone to outages and disruptions than traditional internet services.
Security: Satellite dishes are secure and can be used for sensitive communication and navigation purposes.

Q: What are the disadvantages of using a satellite dish?

A: The disadvantages of using a satellite dish include:

Cost: Satellite dishes can be expensive to purchase and install.
Size: Satellite dishes can be large and may require a significant amount of space.
Weather sensitivity: Satellite dishes can be affected by weather conditions, such as heavy rain or snow.
Interference: Satellite dishes can be affected by interference from other sources, such as other satellites or radio signals.

Q: How do I choose the right satellite dish for my needs?

A: To choose the right satellite dish for your needs, you should consider the following factors:

Frequency: Determine the frequency you need to operate at, such as C-band, Ku-band, or Ka-band.
Size: Determine the size of the dish you need, based on the frequency and the amount of space you have available.
Type: Determine the type of dish you need, such as a C-band dish or a DBS dish.
Budget: Determine your budget for the dish and installation.

Q: How do I install a satellite dish?

A: To install a satellite dish, you will need to:

Choose a location: Choose a location for the dish that is clear of obstructions and has a clear view of the sky.
Mount the dish: Mount the dish on a sturdy structure, such as a wall or a roof.
Connect the dish: Connect the dish to a receiver and a decoder.
Test the dish: Test the dish to ensure it is working properly.

Q: What are the common problems with satellite dishes?

A: Some common problems with satellite dishes include:

Signal loss: Signal loss can occur due to a variety of factors, including weather conditions, interference, and dish misalignment.
Interference: Interference can occur due to a variety of factors, including other satellites, radio signals, and electrical noise.
Dish misalignment: Dish misalignment can occur due to a variety of factors, including wind, rain, and human error.
Receiver or decoder issues: Receiver or decoder issues can occur due to a variety of factors, including software or hardware problems.

Q: How do I troubleshoot common problems with satellite dishes?

A: To troubleshoot common problems with satellite dishes, you should:

Check the signal strength: Check the signal strength to ensure it is within the acceptable range.
Check for interference: Check for interference from other sources, such as other satellites or radio signals.
Check the dish alignment: Check the dish alignment to ensure it is properly aligned.
Check the receiver or decoder: Check the receiver or decoder to ensure it is working properly.

Q: What are the future developments in satellite dishes?

A: Some future developments in satellite dishes include:

Higher frequency bands: Higher frequency bands, such as Ka-band and Q-band, are being developed to provide faster and more reliable internet access.
Smaller dishes: Smaller dishes are being developed to provide more compact and portable satellite communication systems.
Advanced receiver and decoder technology: Advanced receiver and decoder technology is being developed to provide more efficient and reliable signal processing.
Integration with other technologies: Satellite dishes are being integrated with other technologies, such as 5G networks and IoT devices, to provide more comprehensive and connected communication systems.
